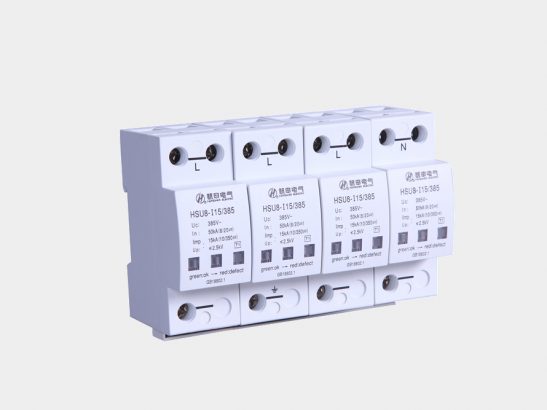

    HSU8 series surge protector

    Description

    HSU8 series surge protector is suitable for the voltage power supply cabinets, power distribution cabinets, ac distribution panel, power distribution box, lighting box and some important equipment of power into the terminal, Damage caused by lightning and overvoltage (surge) used to protect electrical equipment from power supply lines. Class I test products,can be used for overhead lines without direct lightning protection. Protector uses high energy Varistors , can be used for arc extinguishing, intermittent flow requirements particularly high places of the first level of lightning protection.Class II test products First level (over voltage) protection for low voltage distribution system for building access. Such as the construction of low-voltage main distribution cabinet, outdoor power distribution control cabinet, as well as lightning risk higher lightning protection system.

    DownloadHSU8 series surge protector
    • Product Detail
    • Parameters

    The elevation must not be above 2000m

    Surrounding medium temperature limit to + 40 ℃, the lower limit of 25 ℃;

    Installation site of air relative humidity when the highest temperature is + 40 ℃ not more than 50%, at a lower temperature can have higher relative humidity, such as 20 ℃ at 90%.Due to temperature change occasionally produce condensation special measures should be taken

    Model Nominal discharge current In(8/20μs)kA Maximum continuous operating voltage Uc V~ Voltage protection level Up kV Impulse currentIimp(10/350μs)kA Charge Q As Response time ns Combination mode Unipolar width mm Backup fuse
    HSU8-I15 50 385 2.5 15 7.5 ≤25 1P~4P 36 125

    Model Nominal discharge current In(8/20μs)kA Maximum continuous operating voltage Uc V~ Voltage protection level Up kV Maximum discharge current Imax(8/20μs)kA Response time ns Combination mode Unipolar width mm Backup fuse


    HSU8-15



    5

    275 1.2

    15













    ≤25













    1P~4P









    18



    16

    385 1.8
    460 2.0


    HSU8-40



    15

    275 1.2

    40



    32

    385 1.8
    460 2.0
    HSU8-60 25 385 1.8 60 63
    460 2.0
    HSU8-100 40 385 2.2 100

    36

    80
    460 2.5
    HSU8-120 50 460 3.5 120 100
    HSU8-150 60 460 3.5 150 125
